Product Information

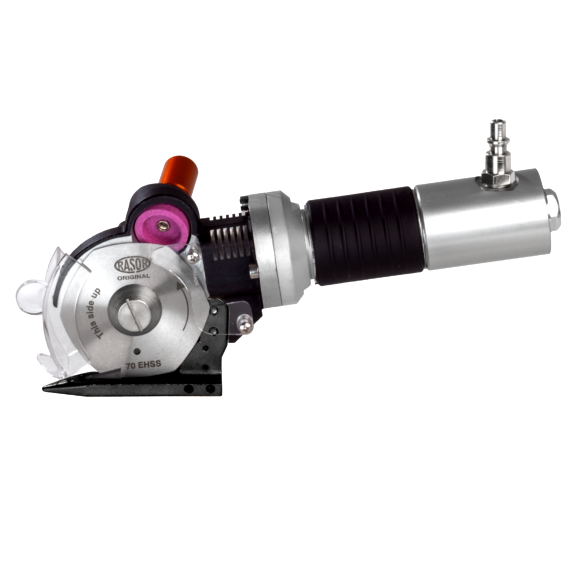

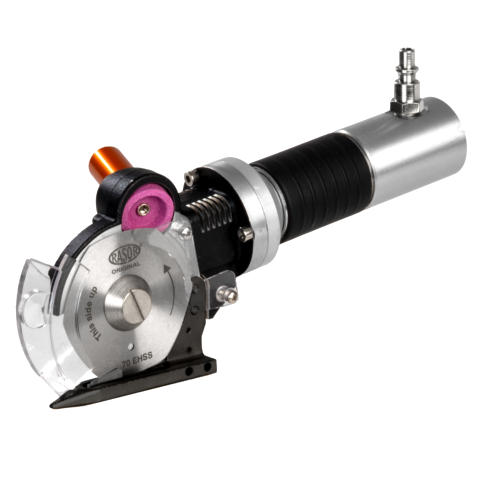

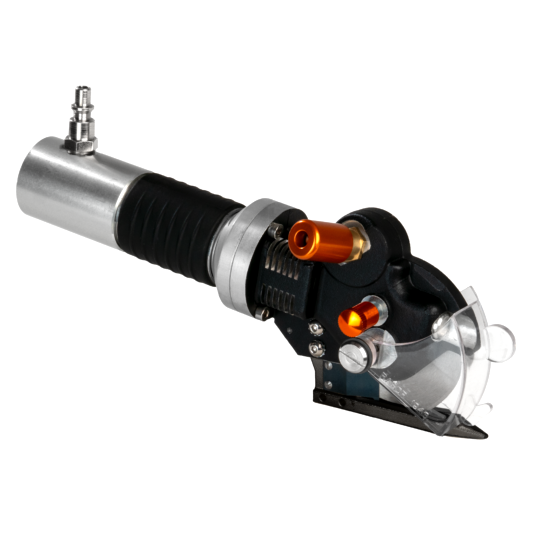

The new Rasor FP-CROSS 2025 is a powerful pneumatic cutting unit designed to cut a wide range of flexible materials up to a maximum thickness of 20mm.
The horizontally placed motor makes the FP-CROSS ideal for installations in confined spaces.
Designed with the highest safety standards, the FP-CROSS offers power, an ergonomic design, and is user-friendly. It is the first pneumatic Rasor O.E.M. unit with a 70 millimetre blade. The outstanding turbine achieves 380watt @22.000 rpm.
It can be used for cutting and stripes and edges, as well as cross-cutting. Featuring an easy-to-reach air connection and a finger protection the FP-CROSS meets the highest safety standards.
Its semi-automatic sharpening system allows blade reconditioning in less than 10 seconds, without the need for disassembly. The high torque and optimized blade speed allows the cutting of rubberized materials, carpet and light flooring materials.
The FP-CROSS is also ideal for cutting technical textiles and leather as well as fiberglass, carbon, and hybrid materials, in single and multiple layers. It is perfect for numerous cutting applications where flexibility, power and ease of use are crucial.
3D model files are available on request. For safety reasons, the use of a steel protection glove is mandatory.
SPECIFICATIONS
| Blade diameter | 70 mm (2.75″), with hard metal counterblade |
| Blade descr. | 70EHSS, 6-edges, HSS steel |
| Blade speed | 1300 r.p.m* |
| Cutting ability | 20 mm (0.7″) |
| Power | 380 W (at nominal air supply conditions)* |
| Working pressure | 6 bar* (±1 bar) with lubricated air |
| Air consumption | 9 l/sec* |
| Net weight | 920 g |
| Total weight (with packaging) | 1750 g |
| Sound pressure | 72 dB (EN ISO 15744)* |
| Vibrations at start up | 1,36 m/sec2 (ISO 8662)* |
| Minimum brightness for working operations | LUX 200 |
| Temperature range | 0 – 55 C |
| Umidity range | 10 – 95% without condensate * The reported data are collected at a pressure of 6 bar (ISO 2787: 1984), recommended operating pressure |
