Rasor FP861A2 Pneumatic Round Knife Cutting Machine
Brand: Rasor
Pickup available at AE Sewing Machines Head Office
Usually ready in 24 hours
Chat with us 24/7, 365 days per year
Got an immediate question? Our live chat is open 24/7, 365 days a year. Simply tap the chat icon in the bottom right corner and get instant support from our friendly team.
Have a Question? Let us advise you
If you've got a question about our products, call us at 0330 332 6205 to connect with our helpful team members.
You can also email us at info@ae-sewingmachines.co.uk or if you need support, please email us at support@ae-sewingmachines.co.uk
Delivery Information
For more information on our delivery options, please visit our dedicated delivery page. We offer free delivery on every online order placed with a value over £200!
You can read more about our shipping policy here.
Terms & Conditions
We try to keep things simple and easy as possible. For all of the legal eagles, you can view our terms and conditions of sale online. Please click here to read more.
Product Information

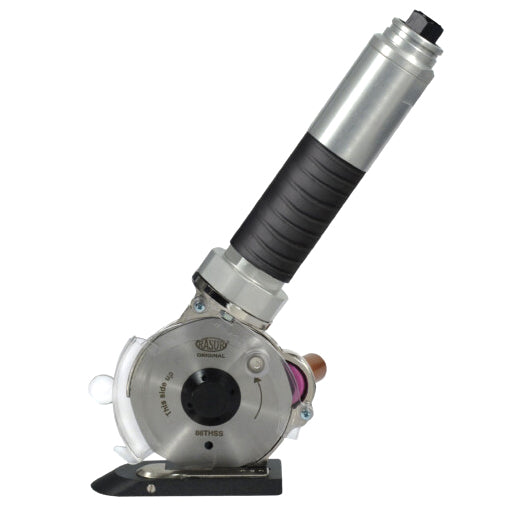

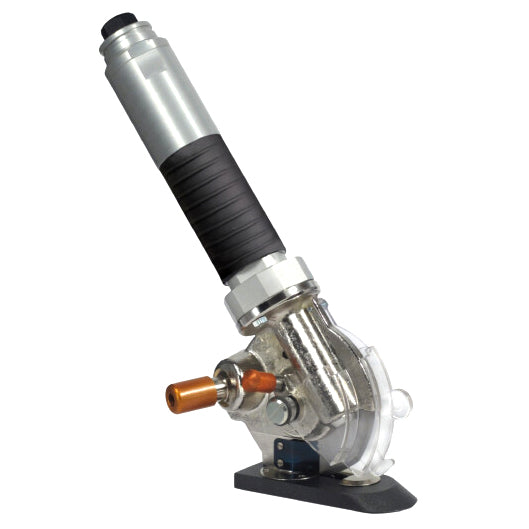

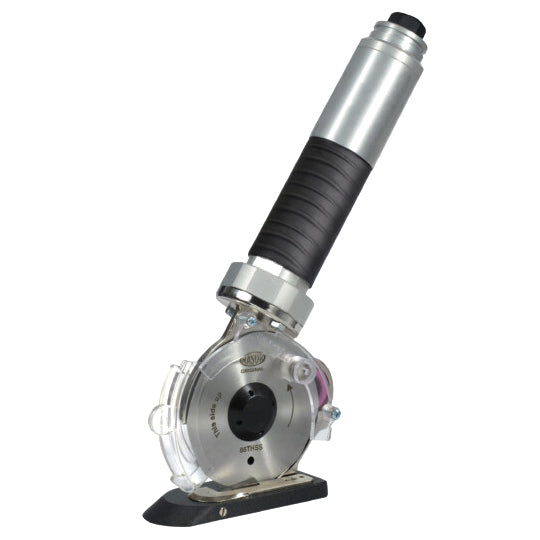

The Rasor model FP861A2 is a pneumatic cutting unit for use with textiles and technical fabrics.
The air compressed motor is entirely made by Rasor and uses the latest generation mechanical and pneumatic components combined with an excellent turbine which reaches a power of 400W at 20,000 RPM, and a high torque.
The motor diameter is now only 40mm, making it the smallest within its category. The rotor blades are made of special VANESTAR® material which minimises weight and friction.
The knife in this machine is 86mm in diameter and has 8-edges allow the cutting of any kind of material at the “flexible stage” up to a cutting thickness of 35mm. The high torque and slow speed of the knife allow the cutting of rubber material with a plastic base for carpet and light flooring applications.
Especially suitable for transversal cutting, the model FP861A2 is suitable for installation in small spaces thanks to the vertical position of the motor. It is arranged with an anchor flange so is easy to fit on a fixed or automatic stirrup.
The new mini Teflon® coated base allows the easy movement of the cutting tool which can also be installed on sliding rails within a small space.
The new semi-automatic push button sharpening stone allows the knife edge to be sharpened in less than 10 seconds without removing the knife. The small maintenance and handling costs make the model FP861A2 the best solution for a powerful and reliable cutting within any O.E.M. application.
SPECIFICATIONS
| Blade diameter | 86 mm (3.4″), with hard metal counterblade |
| Blade descr. | 86THSS, 8-edges, HSS steel |
| Blade speed | 900 r.p.m* |
| Cutting ability | 25 mm (1″) |
| Power | 400 W (at nominal air supply conditions)* |
| Working pressure | 6 bar* (±1 bar) with lubricated air |
| Air consumption | 9 l/sec* |
| Net weight | 1350 g |
| Total weight (with packaging) | 3050 g |
| Sound pressure | 72 dB (EN ISO 15744)* |
| Vibrations at start up | 1,36 m/sec2 (ISO 8662)* |
| Minimum brightness for working operations | LUX 200 |
| Temperature range | 0 – 55 C |
| Umidity range | 10 – 95% without condensate |
