Product Information

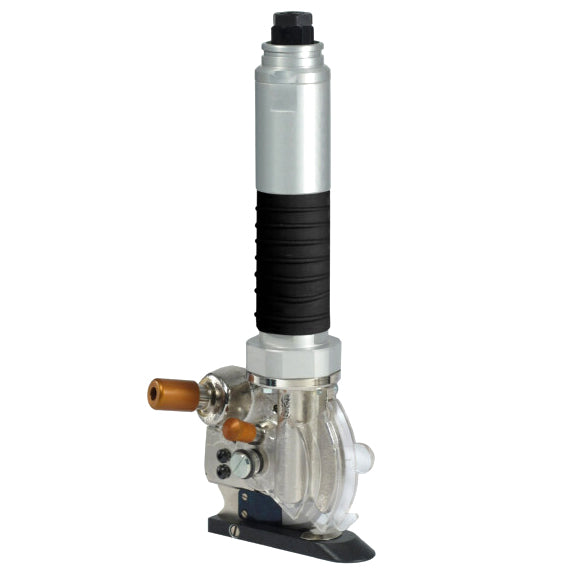

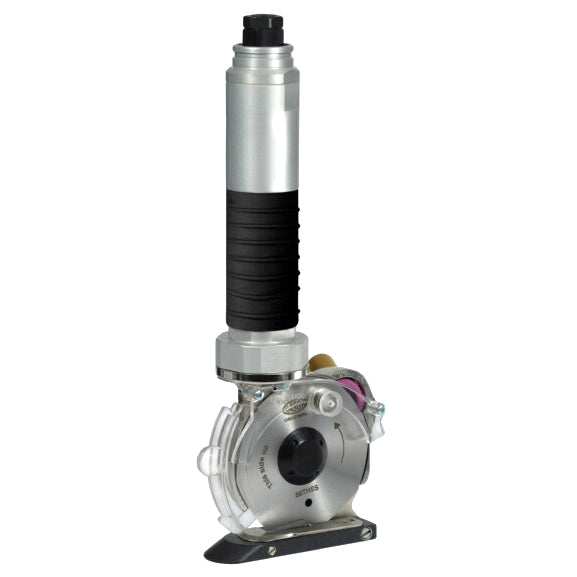

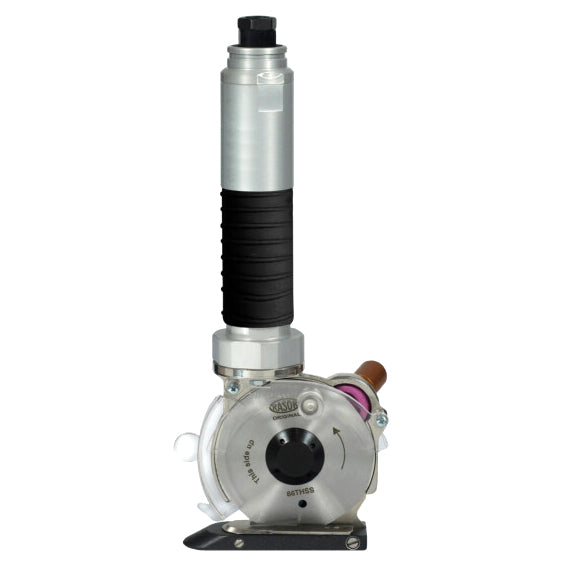

The Rasor model FP861V2 is a pneumatic cutting unit for use with textiles and technical fabrics.
The air compressed motor is entirely made by Rasor and uses the latest generation mechanical and pneumatic components combined with an exceptional turbine to reach a power of 400W at 20,000 RPM and a high torque.
The motor diameter is now only 40mm, making it the smallest within its category. The rotor blades are made of special VANESTAR® material which minimises weight and friction.
The knife in this machine is 86mm in diameter and has 5-edges, making it easy to cut any kind of material at the “flexible stage” up to a cutting thickness of 25mm. The high torque and the slow speed of the knife even allow the cutting of rubber materials with a plastic base for carpet and light flooring applications.
Especially suitable for transversal cutting, the model FP861V2 is also able to be installed in small spaces thanks to the vertical position of the motor. This model is arranged with an anchor flange which makes it easy for it to be fitted on fixed or automatic stirrup.
The base is Teflon® coated and allows for easy cutting tool movement, reducing the friction between the base and the cutting material. It can be installed on sliding rails within a small space. The new semi-automatic push button sharpening stone allows the sharpening of the knife edge to be carried out in less than 10 seconds without removing the knife.
The small maintenance and handling costs make the model FP861V2 the best solution for powerful and reliable cutting within any O.E.M. application.
SPECIFICATIONS
| Blade diameter | 86 mm (3.4″), with hard metal counterblade |
| Blade descr. | 86THSS, 8-edges, HSS steel |
| Blade speed | 900 r.p.m* |
| Cutting ability | 25 mm (1″) |
| Power | 400 W (at nominal air supply conditions)* |
| Working pressure | 6 bar* (±1 bar) with lubricated air |
| Air consumption | 9 l/sec* |
| Net weight | 1300 g |
| Total weight (with packaging) | 3000 g |
| Sound pressure | 72 dB (EN ISO 15744)* |
| Vibrations at start up | 1,36 m/sec2 (ISO 8662)* |
| Minimum brightness for working operations | LUX 200 |
| Temperature range | 0 – 55 C |
| Umidity range | 10 – 95% without condensate * The reported data are collected at a pressure of 6 bar (ISO 2787: 1984), recommended operating pressure |
