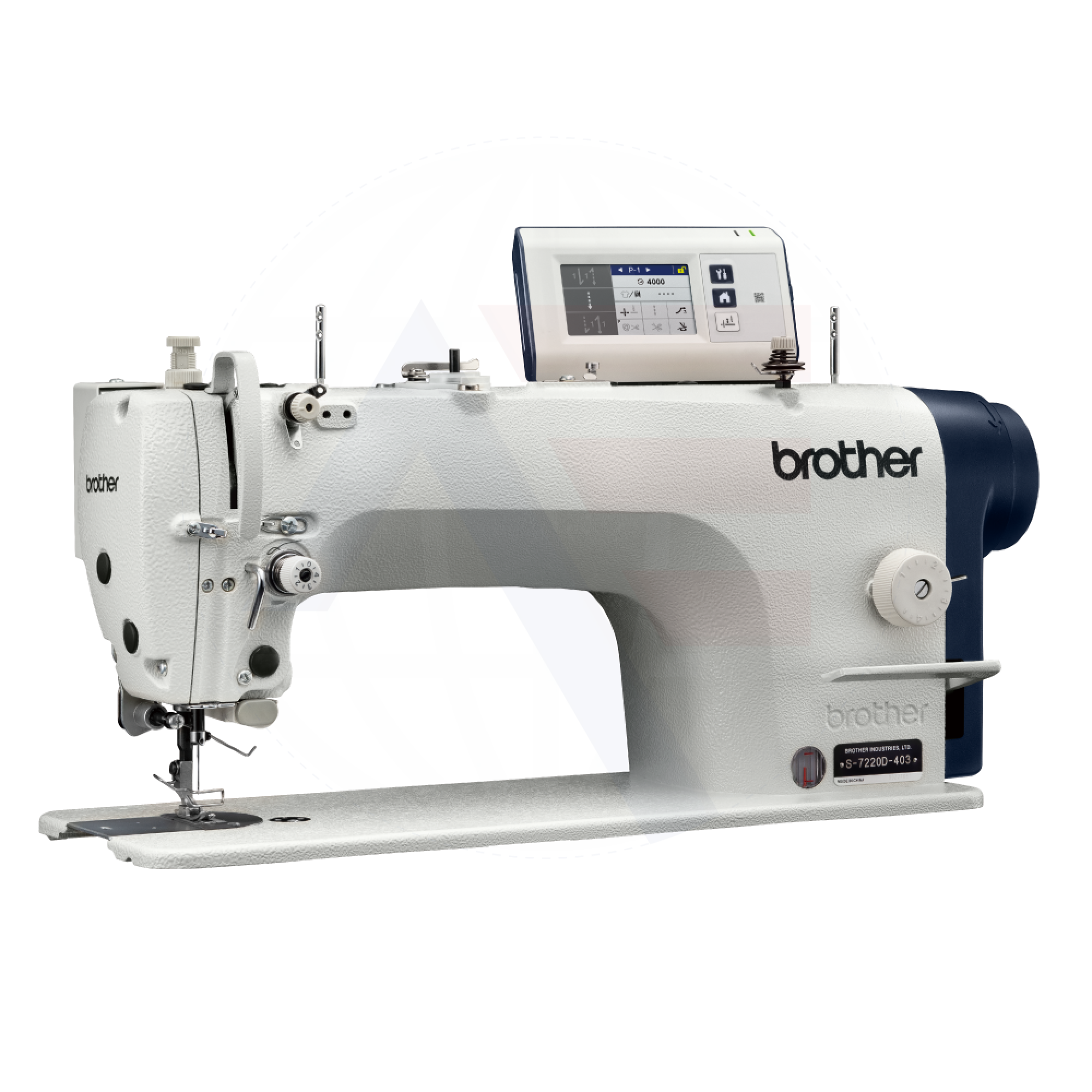

Brother NEXIO S7220D Needle-feed Lockstitch Machine

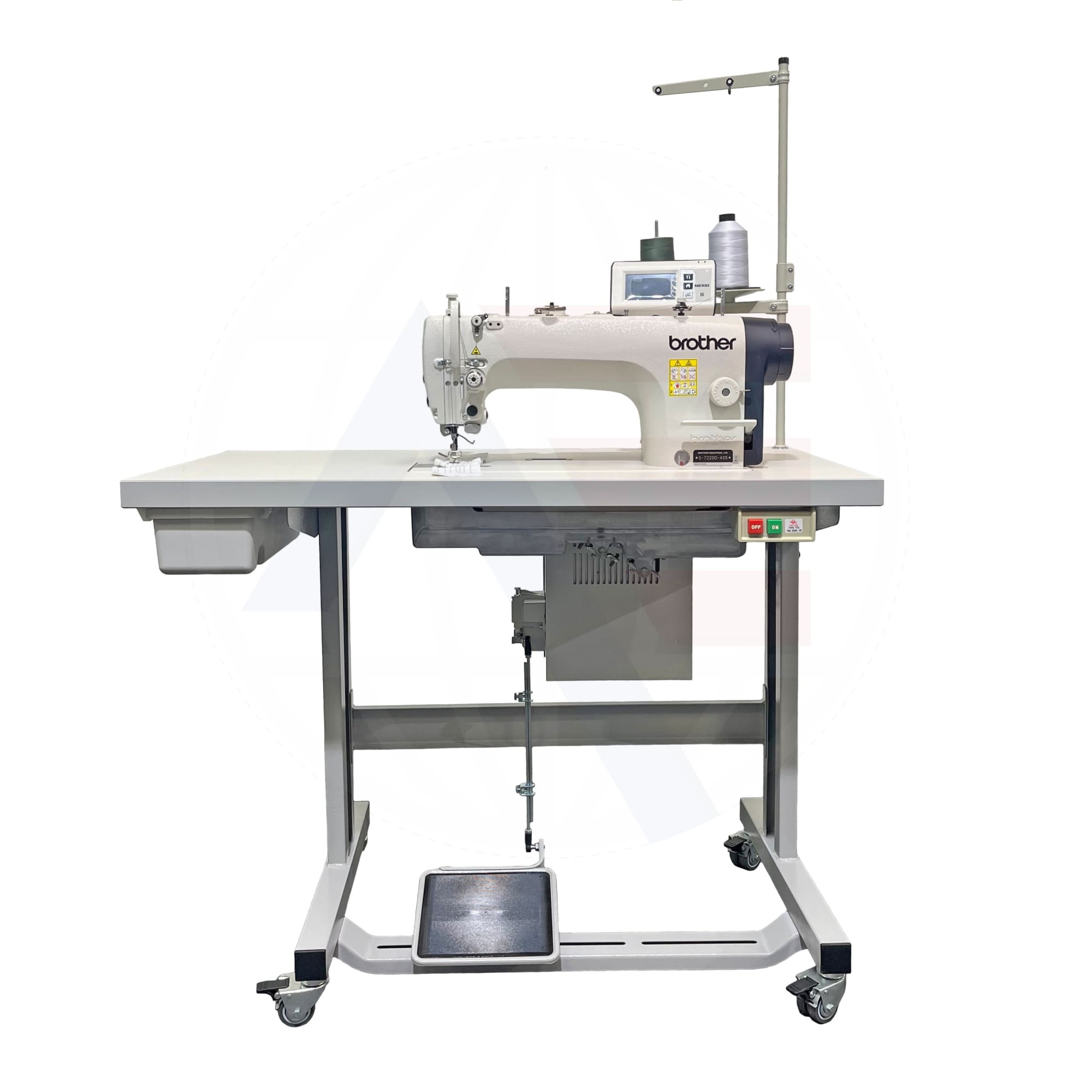

The Brother NEXIO S-7220D is a single needle direct drive needle feed lockstitch machine with thread trimmer. It is supplied fully assembled, complete with British RU/C wheeled stand, manufacturer grade tabletop, drawer & extras. Before dispatch, everything is tested and signed off by one of our technicians so you can be sewing within minutes!

The Brother NEXIO S-7220D is ideal for sewing slippery fabrics or working with multiple layers thanks to the needle feed system which prevents uneven material feeding. It produces high quality seams and is suitable for areas such as placket stitching of polo shirts. The increased needle penetration also makes it ideal when working with tricky processes such as crossing over seams and overlapping sections, with the force automatically increased by vibration control. This model is created with the operator in mind and has additional features such as a needle breakage prevention function when using the quick back tack switch. The user-friendly LCD control panel has 3 mode options: detailed home screen, quick home screen, and easy home screen. They are all clear and easy to understand, even for new operators. There are different subclasses and setup options for this machine. Please contact our team directly if you would like more information or to discuss which would be best suited to your requirements.

Brother NEXIO S-7220D Features

• 1 needle direct drive needle feed lockstitch machine
• Automatic thread trimmer
• Intuitive LCD display panel with simple icons and 3 different view modes
• IoT capabilities and computer connectivity for easy data analysis, production, and maintenance
• Needle breakage prevention function
• Suitable for working with medium/heavy weight material dependent on subclass
• USB port to allow quick and easy data transfer and software upgrades
• Enhanced electronic design with a new circuit board which can cope with voltage fluctuations and vibration resistant for use in various environments

Brother NEXIO S-7220D Specifications

• Max. sewing speed – 5,000 (403 subclass) 4,000 (405 subclass)
• Max. stitch length – 4.5mm (403) 5.4 (405)
• Presser food height – 6mm (bar lifter) 16mm (knee lifter)
• Needle system – 16x231
