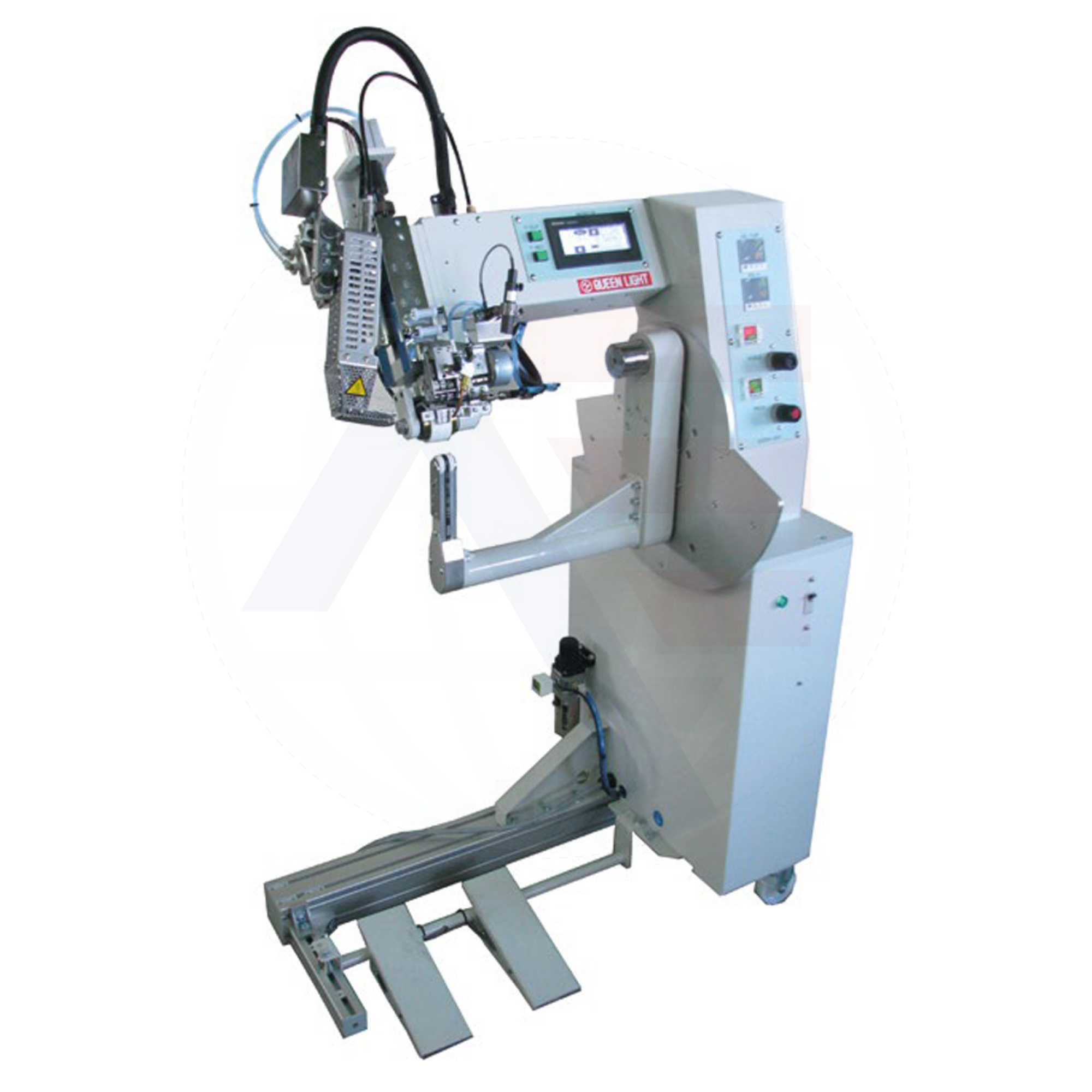

Juki JEUX QHP-A08 Post-bed, Variable Arm System Hot Air Tape Bonding Machine

SKU: QHP-A08
Pay in 3 monthly instalments of .
Choose iwocaPay at checkout.

Have a Question?

If you've got a question about our products, call us at 0330 332 6205 to connect with our helpful team members. You can even speak with our team 24/7 via the live chat service on the bottom right of the screen for immediate assistance. You can also email us at info@ae-sewingmachines.co.uk

Delivery Information

For more information on our delivery options, please visit our dedicated delivery page. We offer free delivery on every online order placed with a value over £200!

You can read more about our shipping policy here.

Warranty
Terms & Conditions

We try to keep things simple and easy as possible. For all of the legal eagles, you can view our terms and conditions of sale online. Please click here to read more.

Product Information

The Juki JEUX QHP-A08 hot air tape bonding machine uses extremely hot air to melt specialised welding tape. The melted welding tape is then fused to the fabrics as it passes through an upper and lower roller. The rollers apply pressure so the tape and fabric then merge together.

This bonding method can seal an existing bond (ultrasonic weld), make traditional sewing seams waterproof and can also be used as a design feature on apparel products.

Juki JEUX QHP-A08 Features

  • Infrared thermosensor for accurate temperature control
  • Digital pressure gauge
  • LCD display provides easy and precise data-input and storage facility with security
  • Shoe post roller (option) for small diameter tape sealing
  • Tape tension releaser (option)

Check out the product specification below for the Juki JEUX QHP-A08 Post-bed, Variable Arm System Hot Air Tape Bonding Machine. If you require any further information for this product then please reach out to our team.

Juki JEUX QHP-A05 Specification

  • Machine Type - Hot Air Tape Bonding Machine
  • Arm Type - Post-bed, Variable Arm System
  • Max. Speed - 10m / min
  • Power Consumption - 1P/200 200 240V 50/60Hz
  • Upper Roller - Steel (Width: 28/30mm / Shape: Groove, Flat or Concave) or Silicone Rubber (30mm)
  • Lower Roller - Silicone Rubber (Width: 300mm / Shape: Flat)
  • Nozzle Heater - 2.0 Kw (200V)
  • Nozzle Width - 22mm, 24mm, 26mm
  • Nozzle Air Temperature - Upto 750°C
  • Air Consumption - 100L/min

Here you can see our collection of spare parts and accessories for Juki JEUX QHP-A08 Post-bed, Variable Arm System Hot Air Tape Bonding Machine. If you require any further information for this product then please reach out to our team.

Here we have a number of downloads available for Juki JEUX QHP-A08 Post-bed, Variable Arm System Hot Air Tape Bonding Machine. If you require any further information for this product then please reach out to our team.
