Product Information

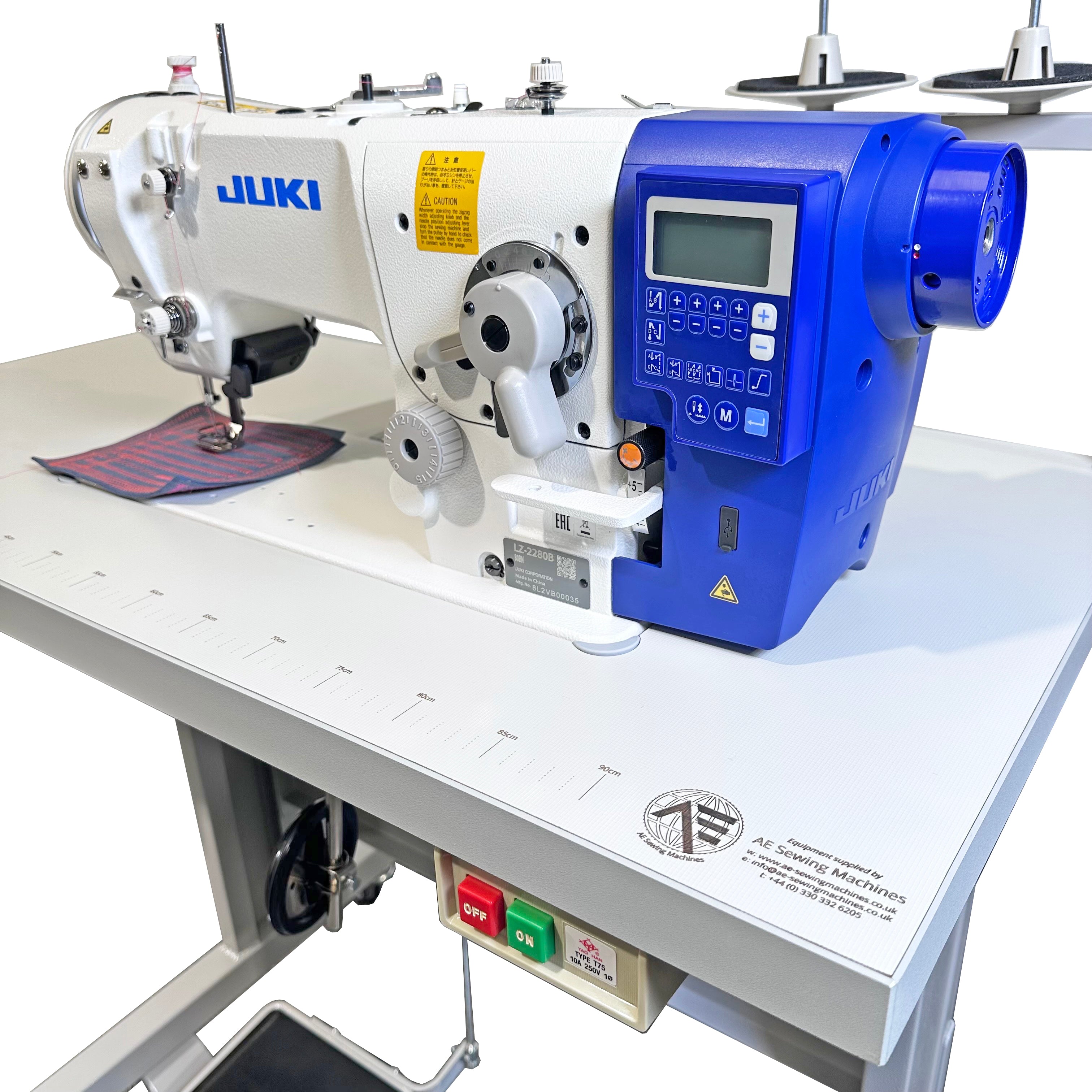

The Juki LZ-2280B Series are fast, reliable zigzag machines suitable for use with light to medium weight fabrics. There are different subclasses available to suit a range of applications, including 3-step zigzag and scallop stitching. All models have a handy operation panel, LED light, direct-drive motor, USB port, and a sewing speed of up to 5,000 stitches per minute.
The Juki LZ-2280B Series is ideal for applications including garment production, labels, underwear, sportswear, soft furnishings and general textile manufacturing. The machine features an integrated direct-drive servo motor and control system, providing responsive operation, accurate stopping, and improved energy efficiency. Its improved feed mechanism provides better material handling, while the low thread tension helps produce soft, neatly finished seams. An integrated adjustable LED hand light is also supplied as standard.

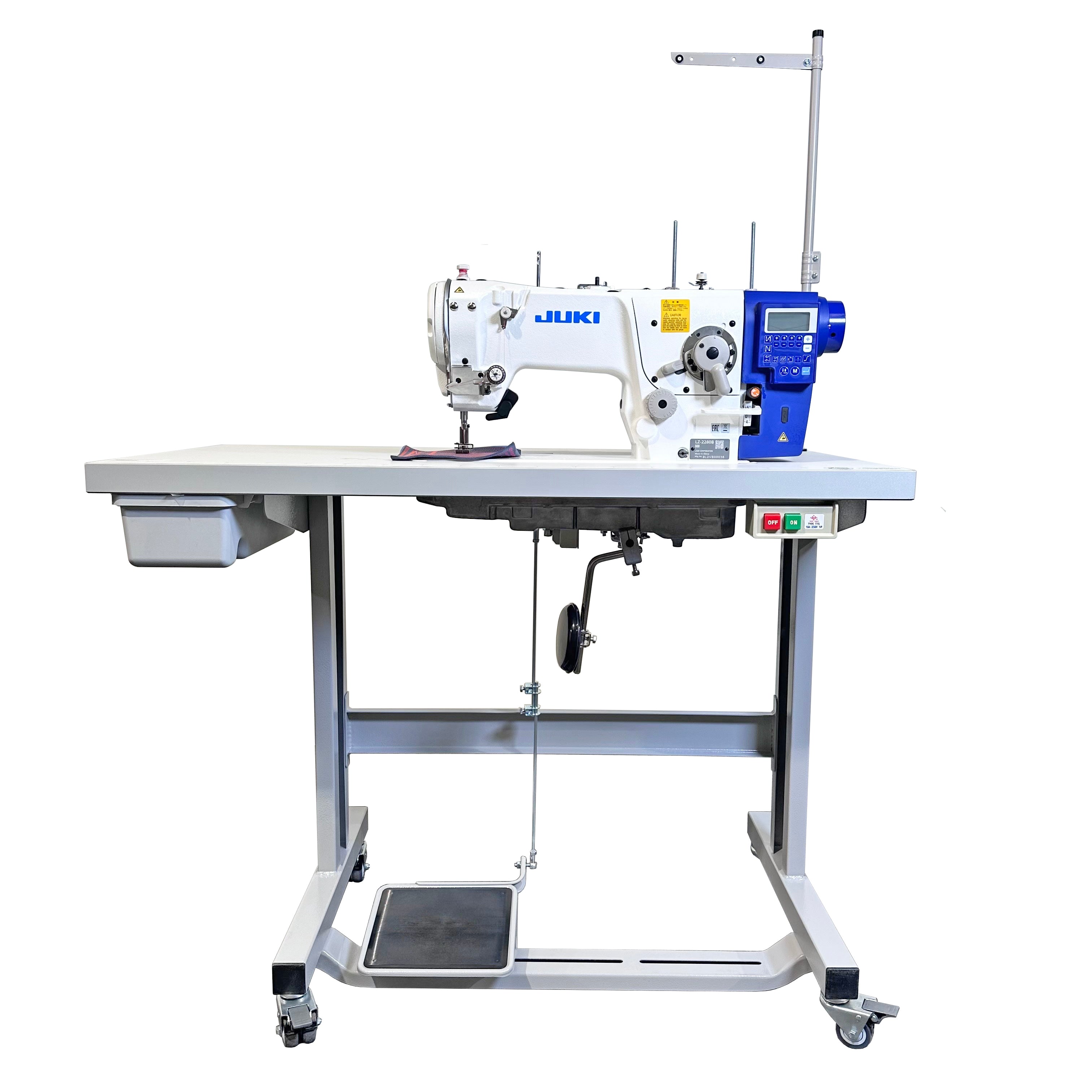

Our machines are supplied fully assembled, complete with British RU/C wheeled stand, manufacturer-grade tabletop, drawer and extras. Before dispatch, everything is tested and signed off so you can be sewing within minutes.
Juki LZ-2280B Series Features
- 1-needle lockstitch zigzag sewing machine
- High-speed sewing performance up to 5,000 sti/min
- Integrated direct-drive 550W AC servo motor
- Built-in control panel
- Adjustable LED hand light
- Improved feed mechanism for reliable material handling
- Needle position changing mechanism
- Reverse feed stitching
- DP hook with titanium-treated inner hook
- Rotary thread take-up
- Fully automatic lubrication
- Low-tension sewing for a soft, consistent finish
- Multiple variants available for standard, wide, 3-step and scallop zigzag stitching
Juki LZ-2280B Series Specification
- Max. sewing speed: 5,000 sti/min
- Max. zigzag width: 5mm standard / up to 10mm depending on model
- Max. feed amount: 2.5mm / up to 5mm depending on model
- Presser foot lift: By hand 5.5mm / by knee 10mm
- Motor: Direct-drive AC servo motor, 550W
- Hook: DP hook with titanium-treated inner hook
- Lubrication: Fully automatic
- Needle system: 438SUK Nm65–90 / DP×134 #9–14
- Reverse feed: Standard
- Needle position adjustment: Standard
Available Models
- LZ-2280B – Standard zigzag, up to 5mm width
- LZ-2280BA – Wide standard zigzag, up to 8mm width
- LZ-2284B – Standard and 3-step zigzag, up to 10mm width
- LZ-2284B-7 – Standard and 3-step zigzag with automatic thread trimming
- LZ-2287B – 3-step zigzag and scallop stitching, up to 10mm width
