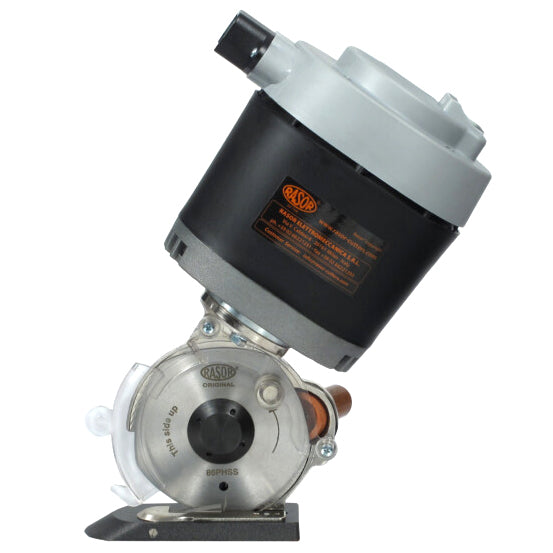

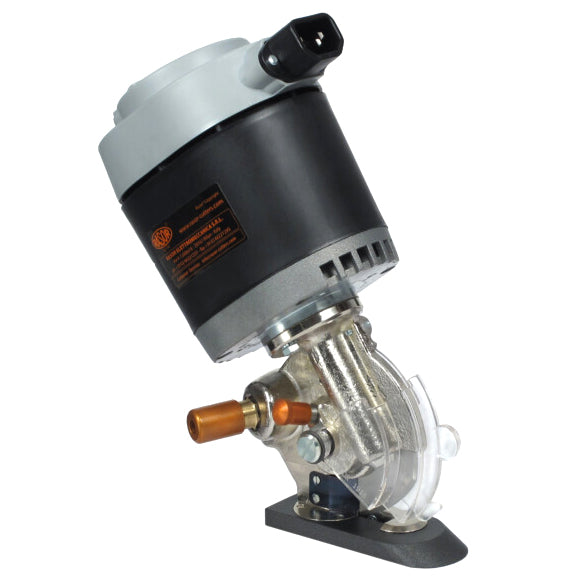

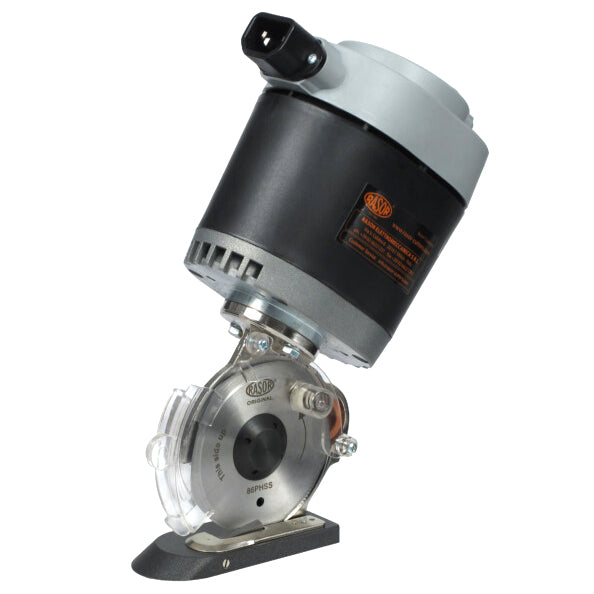

Rasor D86PS2 Single-Phase Cutting Unit
Brand: Rasor
Pickup available at AE Sewing Machines Head Office
Usually ready in 24 hours
Business Lease from $29.84 + VAT per month*
Click here to find out more about Sole Trader and Limited Business Leasing.
*Example: Cash Price of $1,314.00 + VAT, 60 monthly repayments of $29.84 + VAT, Total term of assest finance 60 months, Total charge for credit $476.46 + VAT, Total Amount payable $1,790.46 + VAT. Nett Cost to Business $1,504.59. Tax Relief at 19% $285.87. Minimum leasing value of £1000 + VAT. Subject to status & credit acceptance. Prices may vary. T&C's Apply.
Chat with us 24/7, 365 days per year
Got an immediate question? Our live chat is open 24/7, 365 days a year. Simply tap the chat icon in the bottom right corner and get instant support from our friendly team.
Have a Question? Let us advise you
If you've got a question about our products, call us at 0330 332 6205 to connect with our helpful team members.
You can also email us at info@ae-sewingmachines.co.uk or if you need support, please email us at support@ae-sewingmachines.co.uk
Delivery Information
For more information on our delivery options, please visit our dedicated delivery page. We offer free delivery on every online order placed with a value over £200!
You can read more about our shipping policy here.
Terms & Conditions
We try to keep things simple and easy as possible. For all of the legal eagles, you can view our terms and conditions of sale online. Please click here to read more.
Product Information
This powerful 3phase horizontal O.E.M. unit, developed and produced by Rasor®, is designed to cut a wide range of textiles and flexible elastomers up to 25 millimetres thick.
The new Rasor GRT-CROSS provides exceptional power and is remarkably easy to use. The new gears reach up to 550rpm and make cutting smooth and flawless. The GRT-CROSS is designed with safety and ease of use in mind.
The industrial 3 phases motor, in combination with extra strong steel brass gears, guarantee low maintenance and exceptional durability. The special flange allows the unit to be installed in different ways. The design allows installation in confined spaces, and it can be used for cross, stripe and endless cutting.
Featuring finger protection and a semi-automatic sharpening system, the blade can be reconditioned in less than 10 seconds without the need for disassembly. The motor housing is held by a central foot fitted behind the blade in central position.
This system allows the pressure to spread and guide the machine through the fabrics on both sides of the blade. The knife is half-free on both sides to avoid winding problems even with tough fibres. It can cut a wide range of materials, from classic fabrics to the latest hybrid weavings.
The GRT-CROSS is the ideal choice for a wide range of cutting applications. 3D files are available on request.
For safety reasons the use of RASOR® safety gloves is mandatory.
Experience the future of cutting technology with RASOR®.
SPECIFICATIONS
| Blade diameter | 86 mm (3.4″), with hard metal counterblade |
| Blade descr. | 86THSS, 8-edges, HSS steel |
| Blade speed | 550 r.p.m. |
| Cutting ability | 25 mm (1″) |
| Motor | 3-phases asynchronous 380/400* V, 50Hz |
| Power | 55W |
| Consumption | 0.3 A |
| Protection | IP65 – CL F |
| Net weight (with power supply cord) | 2400 g |
| Total weight (with packaging) | 3200 g |
| Electric cable length | 1 mt (with no plug) |
| Minimum brightness for working operations | 200 LUX |
| Vibrations at start up | < 2.5 m/sec 2 |
| Temperature range | 0 – 55 C |
| Umidity range | 10 – 95% without condensate * This model can be set up at 3-phase 220V |
