Rasor DS503MT 2 Electric Hand Shears
Brand: Rasor
Pickup available at AE Sewing Machines Head Office
Usually ready in 24 hours
Chat with us 24/7, 365 days per year
Got an immediate question? Our live chat is open 24/7, 365 days a year. Simply tap the chat icon in the bottom right corner and get instant support from our friendly team.
Have a Question? Let us advise you
If you've got a question about our products, call us at 0330 332 6205 to connect with our helpful team members.
You can also email us at info@ae-sewingmachines.co.uk or if you need support, please email us at support@ae-sewingmachines.co.uk
Delivery Information
For more information on our delivery options, please visit our dedicated delivery page. We offer free delivery on every online order placed with a value over £200!
You can read more about our shipping policy here.
Terms & Conditions
We try to keep things simple and easy as possible. For all of the legal eagles, you can view our terms and conditions of sale online. Please click here to read more.
Product Information

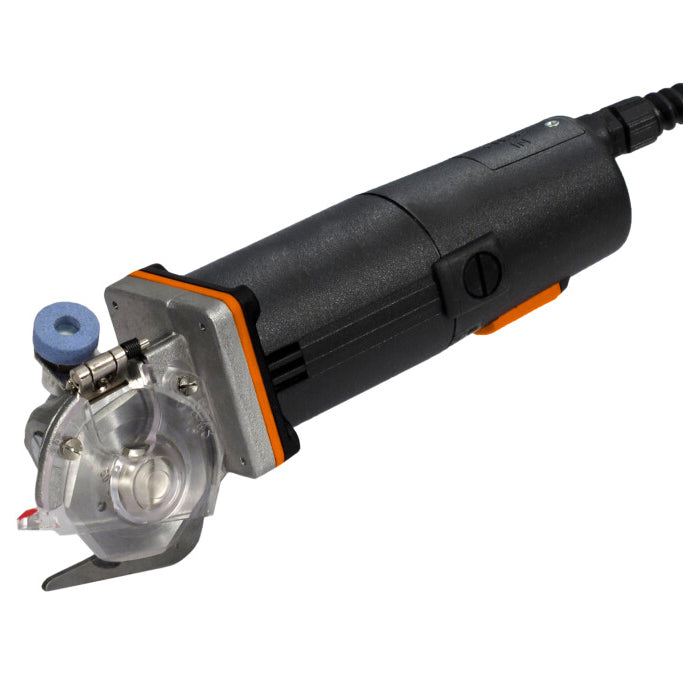

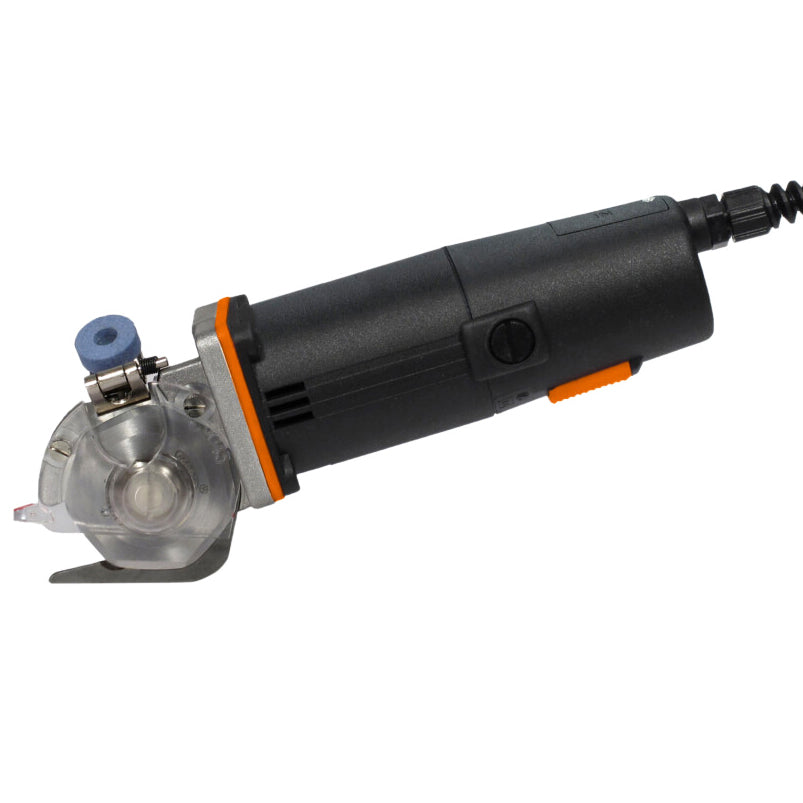

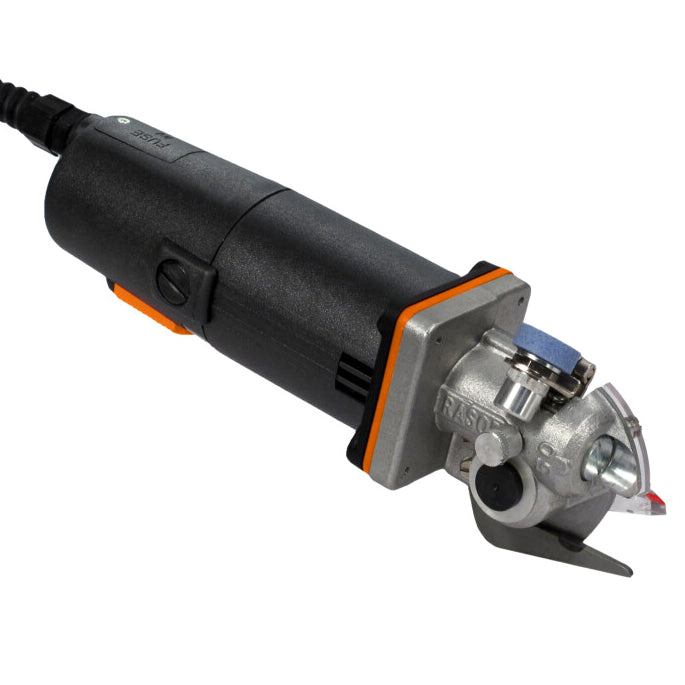

The Rasor DS503MT is the latest electrical hand-held cutting machine designed for material edge trimming.
The new slim foot is welded with a widia (carbide) counterblade to reduce the overall dimension of the shear. With the DS503MT is therefore possible to trim straight or curved sections of material with high precision.
The Rasor DS503MT is widely used for trimming textiles and leather for upholstery applications (chairs, sofas and armchairs) and is ideal for cutting away extra waste material on moulds for plastic and glass fibre.
This machine weighs in at only 950 grams, and its ergonomic design combined with a 55Watt balanced and silenced motor makes it a unique cutting tool that is very easy to use.
The maximum cutting thickness is 8mm and the newly installed sharpening stone allows the blade to be sharpened in less than 10 seconds without disassembly.

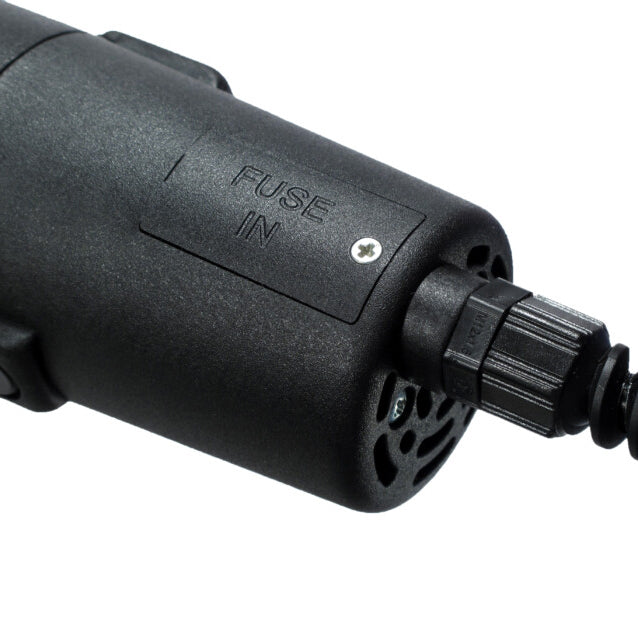

The new circuit board includes a glass fuse which can be easily replaced without disassembling the shear.
SPECIFICATIONS
| Blade diameter | 50 mm(1.96″), with welded hard metal counterblade |
| Blade descr. | 50SEXT, 7-edges, EXTRA steel |
| Blade speed | 1500 r.p.m. |
| Cutting ability | 9 mm (0.35″) |
| Power | singlephase – 55 W |
| Max absorption | 1 A, with protection fuse |
| Net weight (with power supply cord) | 950 g |
| Total weight (with packaging) | 1570 g |
| Electric cable lenght | 1.5 mt (extensible) |
| Minimum brightness for working operations | 200 LUX |
| Vibrations at start up | < 2.5 m/sec 2 |
| Temperature range | 0 – 55 C |
| Umidity range | 10 – 95% without condensate |
