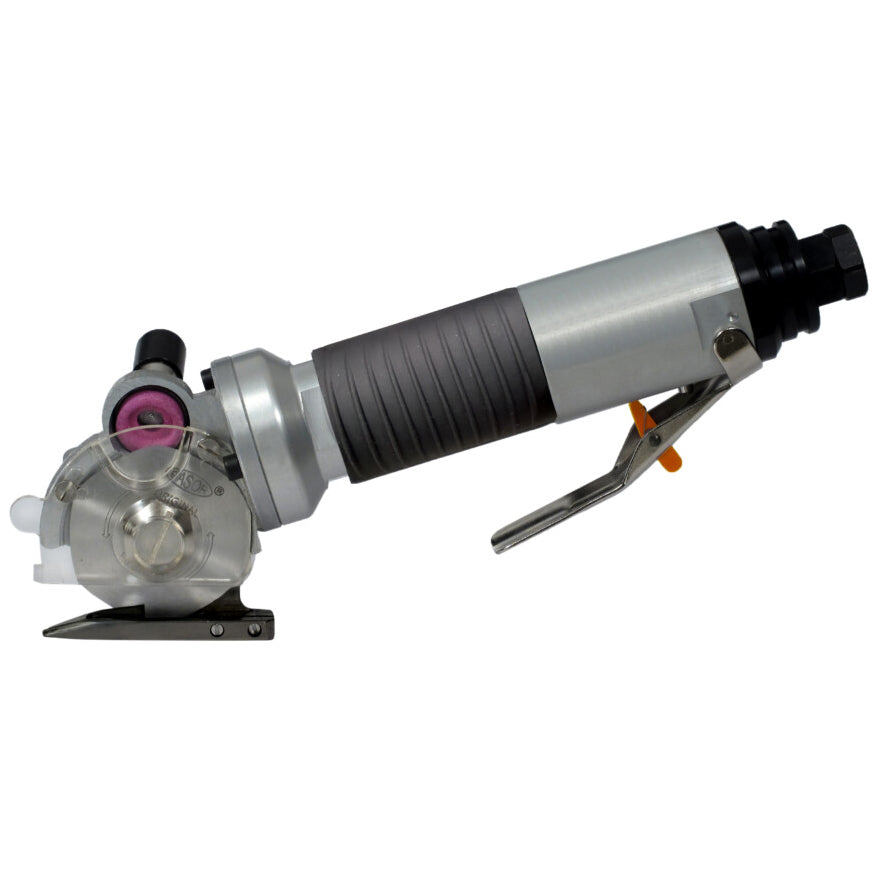

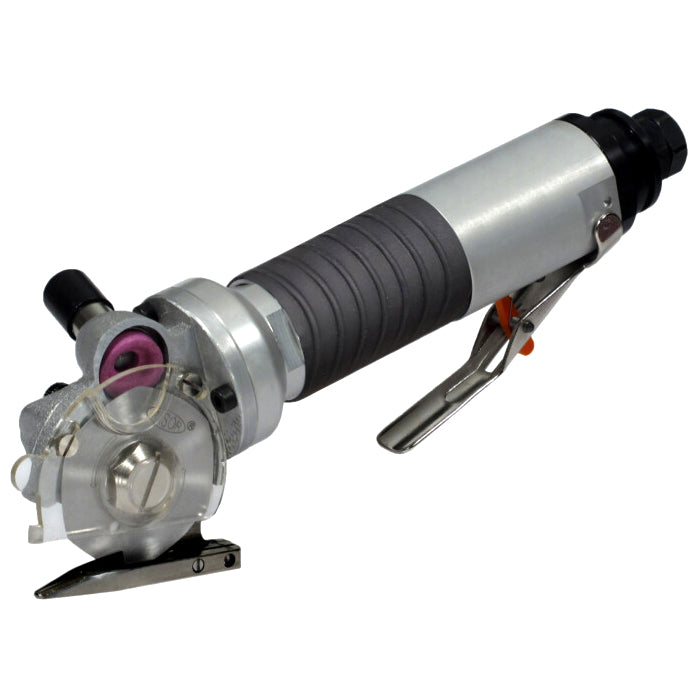

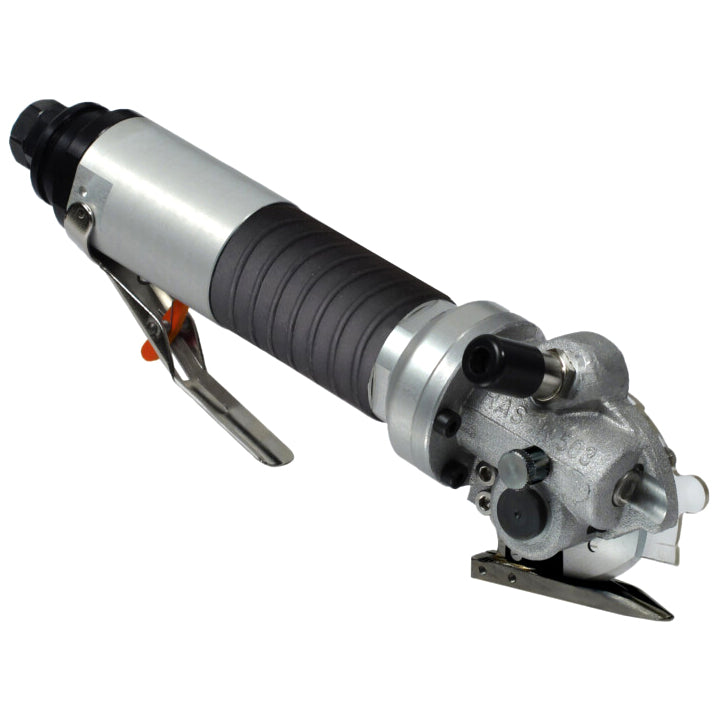

The newest model in the FP series, the Rasor FP503 is the lightest and most powerful pneumatic hand-held cutting tool Rasor have ever produced in more than 70 years of work.
The air motor is wholly made by Rasor. Thanks to latest generation pneumatic and mechanical components, the turbine reaches an extraordinary power of 350Watt in 22,000 RPM and a very high torque.
The motor diameter is only 40mm, making it the smallest within its category. The rotor blades are designed and produced in special VANESTAR material to minimise weight and friction.
The cutting part has also been wholly reassessed: a reinforced structure and bronze/steel gear coupling creates a high torque which allows this pneumatic cutting tool to be used for technical fabrics and leather as well as standard textiles.
The max cutting thickness is now 9mm and the new push button sharpening stone allows the knife edge to be sharpened in less than 10 seconds without disassembly. The new strong and slim shaped foot allows curved sections to be trimmed very easily.
The new Rasor model FP503 is truly a novel concentration of power and lightness (weighing in at only 800 grams) in the field of professional cutting tools.
SPECIFICATIONS
| Blade diameter | 50 mm (1.96″), with hard metal counterblade |
| Blade descr. | 503EEHSS, 6-edges, HSS steel |
| Blade speed | 1900 r.p.m* |
| Cutting ability | 9 mm (0,35″) |
| Power | 350 W (at nominal air supply conditions)* |
| Working pressure | 6 bar* (±1 bar) with lubricated air |
| Air consumption | 9 l/sec* |
| Net weight | 800 g |
| Total weight (with packaging) | 1630 g |
| Sound pressure | 72 dB (EN ISO 15744)* |
| Vibrations at start up | 1,36 m/sec2 (ISO 8662)* |
| Minimum brightness for working operations | LUX 200 |
| Temperature range | 0 – 55 C |
| Umidity range | 10 – 95% without condensate * The reported data are collected at a pressure of 6 bar (ISO 2787: 1984), recommended operating pressure |
