Rasor SW12SSM Single-Phase Cutting Unit
Brand: Rasor
Pickup available at AE Sewing Machines Head Office
Usually ready in 24 hours
Business Lease from $45.97 + VAT per month*
Click here to find out more about Sole Trader and Limited Business Leasing.
*Example: Cash Price of $2,024.00 + VAT, 60 monthly repayments of $45.97 + VAT, Total term of assest finance 60 months, Total charge for credit $733.90 + VAT, Total Amount payable $2,757.90 + VAT. Nett Cost to Business $2,317.57. Tax Relief at 19% $440.34. Minimum leasing value of £1000 + VAT. Subject to status & credit acceptance. Prices may vary. T&C's Apply.
Chat with us 24/7, 365 days per year
Got an immediate question? Our live chat is open 24/7, 365 days a year. Simply tap the chat icon in the bottom right corner and get instant support from our friendly team.
Have a Question? Let us advise you
If you've got a question about our products, call us at 0330 332 6205 to connect with our helpful team members.
You can also email us at info@ae-sewingmachines.co.uk or if you need support, please email us at support@ae-sewingmachines.co.uk
Delivery Information
For more information on our delivery options, please visit our dedicated delivery page. We offer free delivery on every online order placed with a value over £200!
You can read more about our shipping policy here.
Terms & Conditions
We try to keep things simple and easy as possible. For all of the legal eagles, you can view our terms and conditions of sale online. Please click here to read more.
Product Information

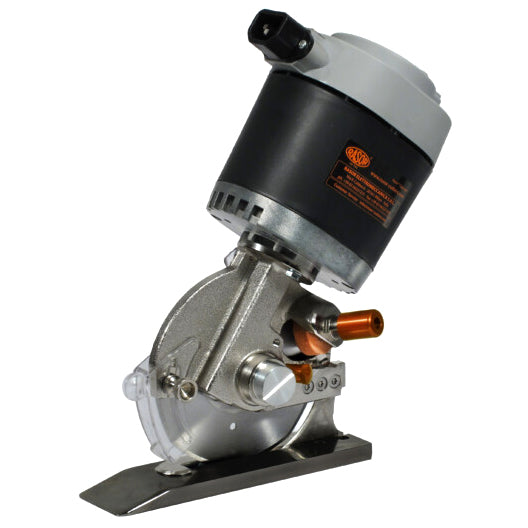

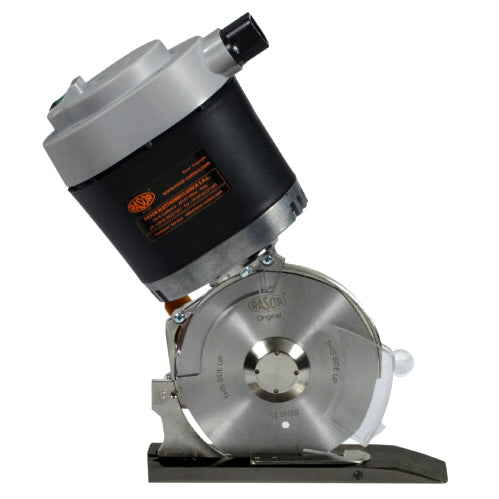

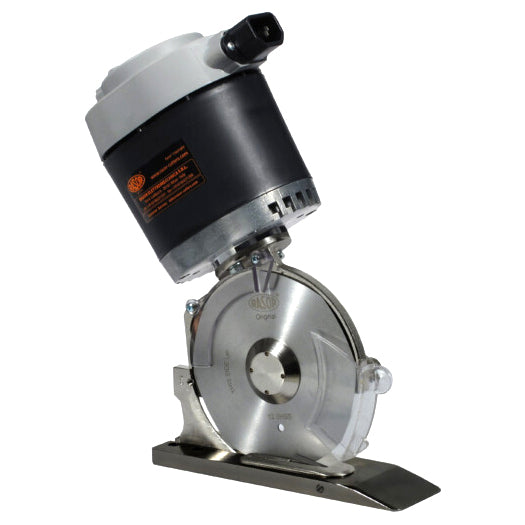

The Rasor SW12SSM is a new generation cutting unit for use on high thickness materials. Recently launched on the market, the SW12SSM benefits from the new geometry of the “Monster series” motor housing.
The difference between SW12SSM and other Rasor cutting units is that its motor housing is held by a central foot fitted behind the blade in a central position. This system spreads the shearing stress to move the machine through the fabrics on both sides of the cutter, ensuring the cut is perfectly straight and smooth.
The knife is half-free on both sides to avoid winding problems even with tough fibres. The SW12SSM is ideal for cutting composite materials such as glass fibre, carbon fibre and Kevlar. The impressive 350 Watt motor combined with a bronze/steel coupling gear develops a very high torque.
The Rasor SW12SSM is able to cut any material at the “soft” stage up to maximum 50 mm thickness. High torque combined with slow knife RPM allows you to cut even rubber materials and plastic based material for applications including carpets and industrial flooring in multiple layers.
The push button sharpening stone allows the sharpening of the knife edge to be completed in less than 10 seconds without disassembly. The aluminium cutting base is Teflon® coated for easy running with reduced friction between the base and the material.
The SW12SSM is ideal for transversal cutting and is arranged with an anchor flange to be easily adjusted on a fixed or automated hanger. For 24-hours a day trimming the SW12SSM is also available in right version (specular) as model SW12SM.
SPECIFICATIONS
| Blade diameter | 120 mm (4.7″), with hard metal counterblade |
| Blade descr. | 12SHSS, 8-edges, HSS steel |
| Blade speed | 550 r.p.m. |
| Cutting ability | 50 mm (2″) |
| Power | singlephase – 350 W |
| Max absorption | 2.5 A |
| Net weight (with power supply cord) | 4500 g |
| Total weight (with packaging) | 6200 g |
| Electric cable length | 1.5 mt (with no plug) |
| Minimum brightness for working operations | 200 LUX |
| Vibrations at start up | < 2.5 m/sec 2 |
| Temperature range | 0 – 55 C |
| Umidity range | 10 – 95% without condensate |
