Rexel PDNS-2 Pneumatic Chair Press With Drawstring System (New Model)

Name: Rexel PDNS-2 Pneumatic Chair Press With Drawstring System (New Model)
Brand: Rexel
Availability: InStock

SKU:

Product variants

Pickup available at AE Sewing Machines Head Office

Usually ready in 24 hours

Chat with us 24/7, 365 days per year

Got an immediate question? Our live chat is open 24/7, 365 days a year. Simply tap the chat icon in the bottom right corner and get instant support from our friendly team.

Have a Question? Let us advise you

If you've got a question about our products, call us at 0330 332 6205 to connect with our helpful team members.

You can also email us at info@ae-sewingmachines.co.uk or if you need support, please email us at support@ae-sewingmachines.co.uk

Delivery Information

For more information on our delivery options, please visit our dedicated delivery page. We offer free delivery on every online order placed with a value over £200!

You can read more about our shipping policy here.

Warranty

Terms & Conditions

We try to keep things simple and easy as possible. For all of the legal eagles, you can view our terms and conditions of sale online. Please click here to read more.

Product Information

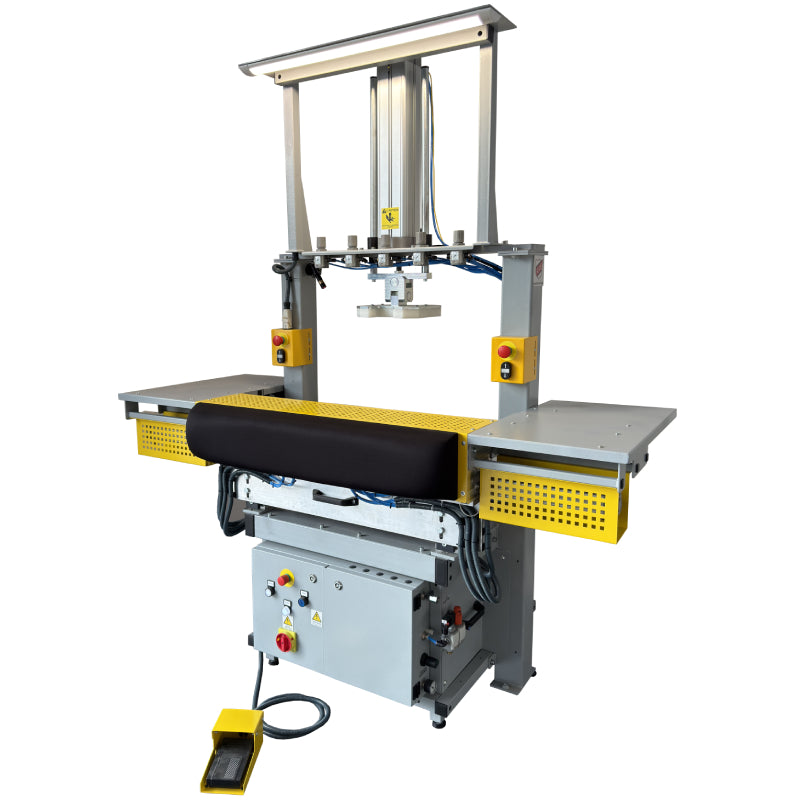

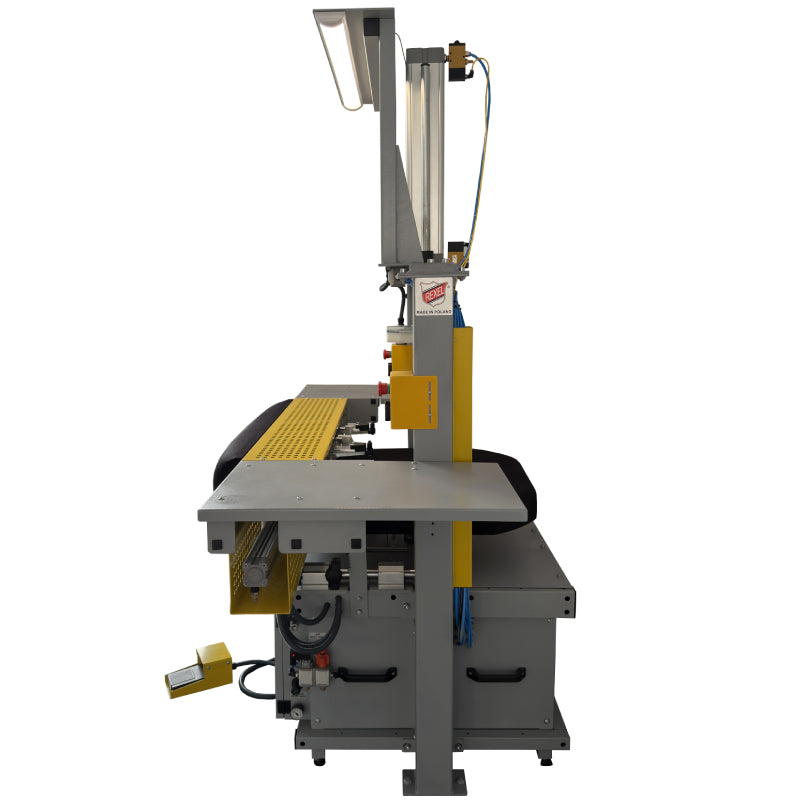

The Rexel PDNS-2 is the latest in Rexel's range of specialist pneumatic chair presses designed for upholstering seats and backrests. The press keeps the workpiece in place, and the drawstring device ensures the string is correctly tightened and tensioned using a simple foot control. This updated model has additional features including a laser pointer to indicate the centre of the cushion and improve accuracy. If you aren't sure which model would best suit your requirements please get in touch and our team will be happy to help.

Our team have developed an adapted overlock sewing machine, the Advance ASA-6914R/DSA, for sewing drawstrings into place that is the ideal companion to this press. Please get in touch with our team to find out more.

Key features:

Significantly increases efficiency, productivity, and consistency when upholstering seats with a drawstring fastening system.
Step-sequence foot control where each press of the foot pedal triggers the next action in the drawstring cycle.
Two-handed safety control ensures the press head only lowers when both buttons are pressed simultaneously.
Built-in pressure regulators provide precise control over the pressing force of each pair of cylinders. This allows the force to be adjusted for different types of drawstring and seats.
Overhead lighting for improved visibility during work.

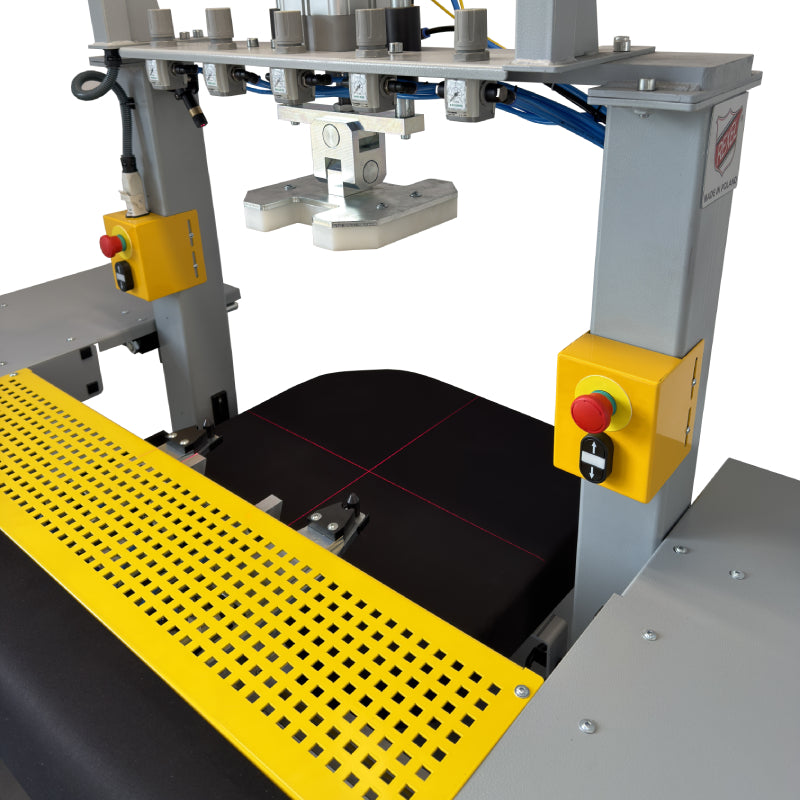

Cross-shaped laser pointer to indicate the centre of the cushion and ensure accurate positioning.
Emergency stop button instantly vents pressure from the cylinders for added safety.

Specifications:

Model: PDNS-2
Adjustable tabletop height: 670 mm
Working pressure: 3–8 bar (43.5–116 psi)
Pressure regulator: Yes
Cylinder height adjustment: No
Voltage: 1~230 V AC
Power: 150W

Check out the product specification below for the Rexel PDNS-2 Pneumatic Chair Press With Drawstring System (New Model). If you require any further information for this product then please reach out to our team.

Here you can see our collection of spare parts and accessories for Rexel PDNS-2 Pneumatic Chair Press With Drawstring System (New Model). If you require any further information for this product then please reach out to our team.

Here we have a number of downloads available for Rexel PDNS-2 Pneumatic Chair Press With Drawstring System (New Model). If you require any further information for this product then please reach out to our team.

Rexel

REXEL company holds a steady position on the market of cutting equipment manufacturers for 35 years. Producers of machines for manufacturers of upholstered furniture, clothing, and roller blinds, as well as many cutting devices for any line of trade.
