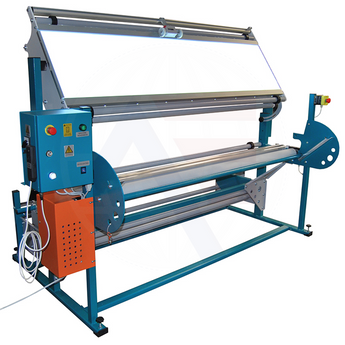

Rexel PP-3S (heavy-duty) Fabric Rewinding & Inspection Machine

Rewinding-inspection machine with backlight and more powerful winding unit (from the roll cradle onto the tube), and length measurement device.

Key features:

- Rewinding / inspection machines with backlighting screen provide fast, easy quality control and measure fabric length.
- Machines can have a built-in lay manual (version /R) or semi-automatic (version /A) end-cutter for increased efficiency in the workplace.
- A perfect choice for all textile manufacturers and businesses that deal with any kind of fabric.
- The machine winds fabric from a roll placed inside the cradle on a core placed on a winding shaft.
- High winding speed (50 m/min or 60 m/min).
- Mechanical counter (yards or meters).
- Easy fabric roll installation.
- Frame made of powder-coated steel.

Safety features:

1) Immediate machine stop in case when an emergency stop button is pressed;
2) For safety reasons, it is not possible to start the machine after emergency situations unless the operator resets the machine (accidental self-start safeguard);
3) The machine is protected using special safety relays made by Omron.

Available models:

PP-3S Rewinding-inspection machine with backlight and more powerful winding unit (from the roll cradle onto the tube), and length measurement device.
PP-3S/R Additionally equipped with manual fabric end cutter OT-1/R.
PP-3S/A Additionally equipped with semi-automatic fabric end cutter OT-1/A.

Specifications:

Model:    PP-3S
Maximum width of fabric roll:    190 cm (74,80")
Maximum roll diameter:    50 cm (19,69")
Maximum rewindable weight of roll:    70[kg]
Voltage:    230[V]
Wattage:    0,55[kW]
Maximum winding speed:    50-60 m/min
Screen size:    200 x 50 cm (78.74" x 19.68")
Screen:     Yes
Сounter for yards or meters:    Yes
Cradle for roll:    Yes
