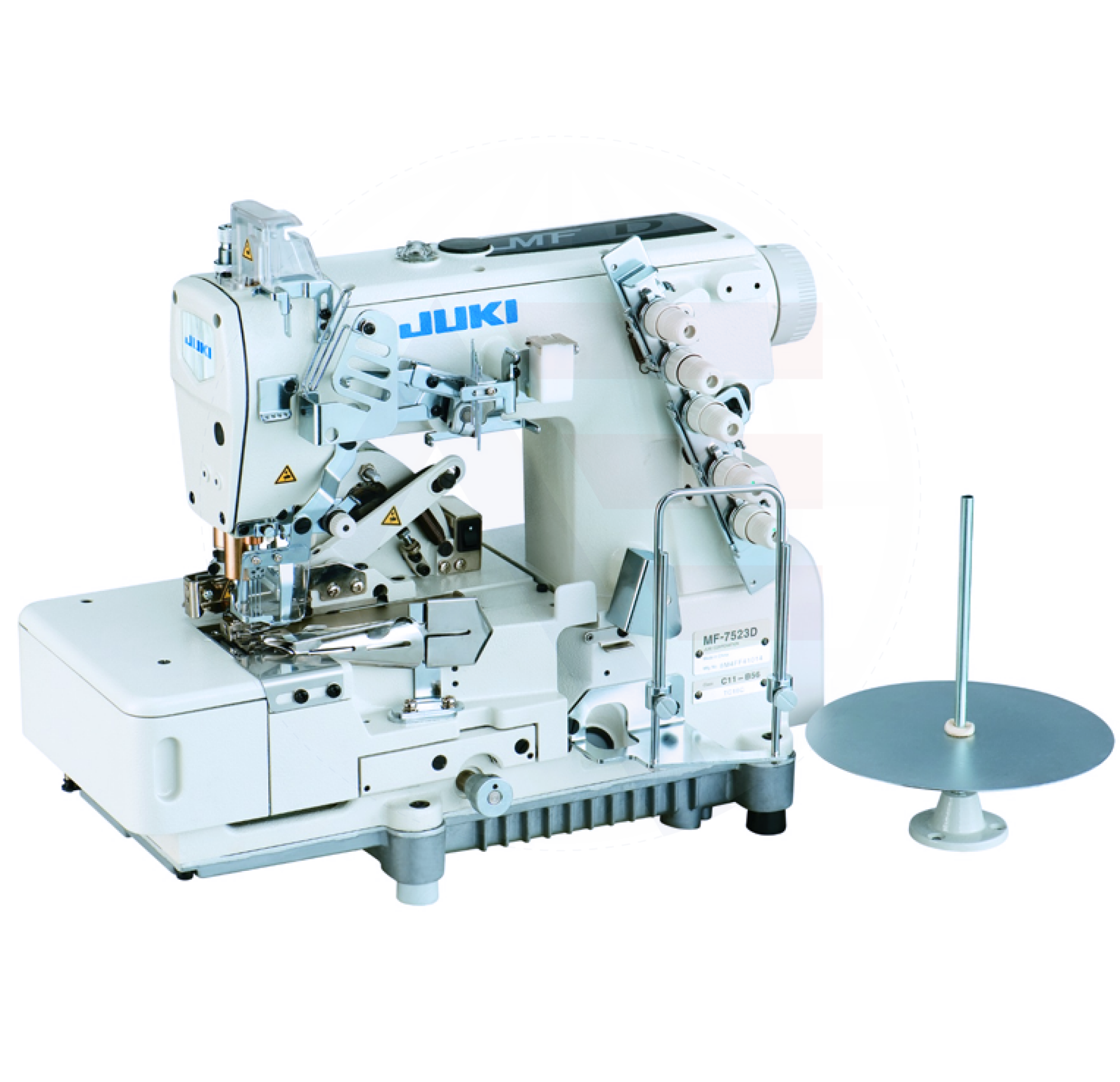

Juki MF-7523-C11 Flat-bed, Binding Coverstitch Machine

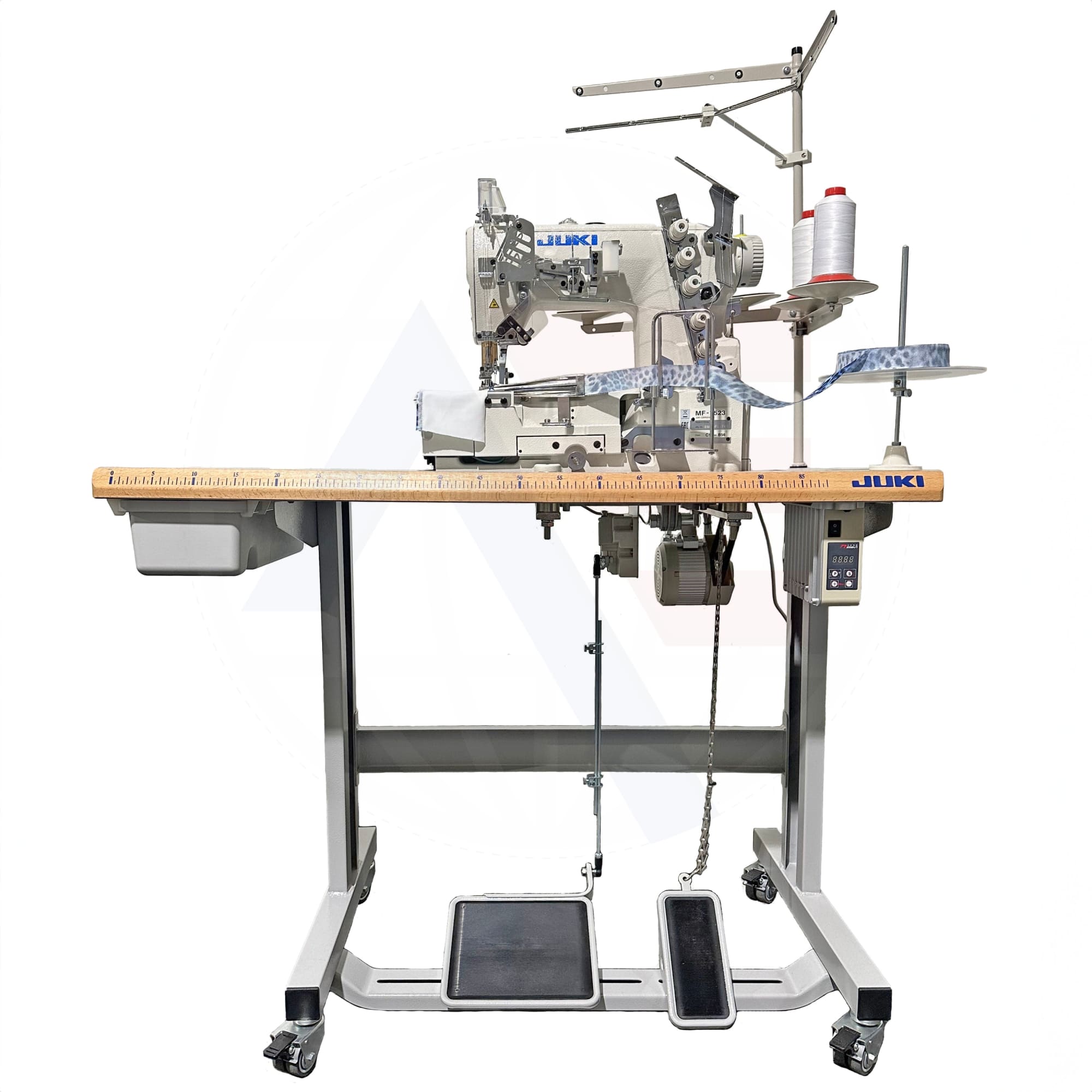

The Juki MF-7523-C11 is a high-speed, differential feed top and bottom coverstitch machine. It is supplied fully assembled, complete with British RU/C wheeled stand, manufacturer grade tabletop, drawer & extras. Before dispatch, everything is tested and signed off by one of our technicians so you can be sewing within minutes!

The Juki MF-7523-C11 is designed to produce high-quality seams when attaching collarette binding onto items such as underwear, briefs, and knitwear. It is equipped with many different mechanisms to ensure seam quality, including the new feed mechanism, and the differential-feed micro-adjustment mechanism. This is particularly tailored towards ensuring that elasticated materials don’t slip, warp, or become damaged whilst sewing. There are different subclasses within this model, a 2 needle and a 3 needle version. Please contact our team directly if you’d like more advice as to which subclass would be better suited to your requirements.

Juki MF-7523-C11 Features

• 2/3 needle (dependent upon the model subclass) high-speed, differential feed flat-bed top and bottom coverstitch machine
• Specially designed for attaching collarette binding to items such as knitwear and briefs
• Built with an electromagnetic type tape cutter for optimum ease of use
• Automatic lubrication system with dry-head technology to prevent oil staining
• Looper thread twining prevention mechanism for improved maintenance
• Feed longitudinal position adjustment mechanism to improve responsiveness and reduce uneven feeding when using elasticated materials
• Micro-lifter mechanism to allow elastic or delicate material to be sewn with the presser foot slightly raised

Juki MF-7523-C11 Specification

• Max. sewing speed – 6,500 sti/min
• Lift of the presser foot – 5mm (with top and bottom covering stitch) 8mm (with bottom covering stitch)
• Max. stitch length – 3.6mm
• Needle Gauge – 3.2, 4.8, 5.6, 6.4mm
• Needle system – UY 128 GAS
